PowerCLI: Easy NFS datastore setup vSphere 5.x

For vSphere 4.1 I wrote a PowerCLI script to attach NFS shares. You can find the script here.

In vSphere 5 the properties has changed so I had to change the script. In fact the script is much simpler because all the properties can be found in $nfs.info.nas:


The RemoteHost presents the IP address, The RemotePath presents the Share and the Name property presents the name of the share. Now we have the correct variables so it’s time to fix the old script. You can find the result below:

$REFHOST = Get-VMHost "<esxi hostname>"
foreach($NEWHOST in (Get-Cluster <cluster> | Get-VMhost | Where {$_.Name -ne $REFHOST.Name}) | Sort Name){
    foreach($nfs in (Get-VMhost $REFHOST | Get-Datastore | Where {$_.type -eq "NFS"} | Get-View)){
        $share = $nfs.info.Nas
        if($share.Remotehost -match "\b\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\b"){
            $remotePath = $share.RemotePath
            $remoteHost = $share.Remotehost
            $shareName = $nfs.Name

            if ((Get-VMHost $NEWHOST | Get-Datastore | Where {$_.Name -eq $shareName -and $_.type -eq "NFS"} -ErrorAction SilentlyContinue )-eq $null){
                Write-Host "NFS mount $shareName doesn't exist on $($NEWHOST)" -fore Red
                New-Datastore -Nfs -VMHost $NEWHost -Name $Sharename -Path $remotePath -NfsHost $remoteHost    | Out-Null

PowerCLI: Easy NFS datastore setup

It’s a new year so let’s start with a new PowerCLI post. This post is inspired by the blog post of @alanrenouf: PowerCLI easy vswitch portgroup setup. I love the whole idea of taking a good working config from a vSphere host and use it on a fresh installed vSphere host to make sure it’s compliant.  In this post I will show you how to perform the same trick with NFS datastores like Alan did with the vSwithes and Portgroups.

My home lab contains two HP ml110 g5 and a simple P4 box with some hard disks to add shared storage to the lab. It’s running Debian linux and is capable of presenting iSCSI targets, NFS and SAMBA shares .I use NFS as shared storage for my vSphere lab.

On esx2.ict-freak.local I use the following NFS datastores:


But I messed up the configuration of the other vSphere host in my lab called esx1.ict-freak.local. So I had to reset the network settings and lost all the NFS datastores:


So I needed to add the five NFS shares. This is a nice task for PowerCLI and the New-Datastore cmdlet:

Update: I had to remove the last / from the Path variable. If you do not remove the last / the script will mount the NFS share but with a new UUID. See Damian Karlson his post about this subject here.

Continue reading “PowerCLI: Easy NFS datastore setup”

vSphere: Set NFS Advanced Configuration Settings via esxcfg-advcfg

Yesterday I created a post about changing the advanced configuration settings for NFS via PowerCLI. Today I will show you how you can change the advanced configuration settings with the use of esxcfg-advcfg. This is quite useful for kickstart installations.

This is a snippet from my ks.cfg file:

# Set NFS advanced Configuration Settings
/usr/sbin/esxcfg-advcfg -s 30 /Net/TcpipHeapSize
/usr/sbin/esxcfg-advcfg -s 120 /Net/TcpipHeapMax
/usr/sbin/esxcfg-advcfg -s 10 /NFS/HeartbeatMaxFailures
/usr/sbin/esxcfg-advcfg -s 12 /NFS/HeartbeatFrequency
/usr/sbin/esxcfg-advcfg -s 5 /NFS/HeartbeatTimeout
/usr/sbin/esxcfg-advcfg -s 32 /NFS/MaxVolumes

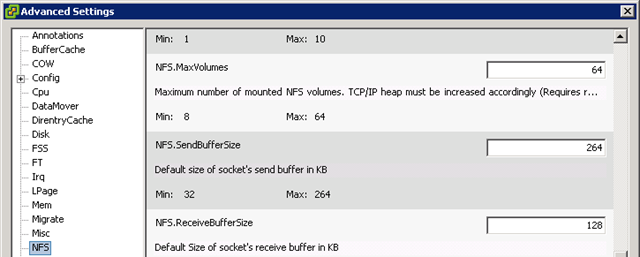

So how do you know what values you need to enter when you want to use this command. Bouke has a html version of the esxcfg manuals on his blog: http://www.jume.nl/esx4man/man8/esxcfg-advcfg.8.html. But this page doesn’t show the information I needed. Open the Advanced Settings screen in the vSphere client.


Open the NFS settings. Let’s use the NFS.MaxVolumes in this example. NFS is the ‘root’ folder the setting in this case MaxVolumes is the child folder. So if you want to change this setting via /usr/sbin/esxcfg-advcfg we need to use the /NFS/MaxVolumes. If you want to know what the current value is, just run the following command from the service console:

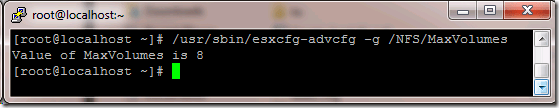

/usr/sbin/esxcfg-advcfg –g /NFS/MaxVolumes

This will be the output:

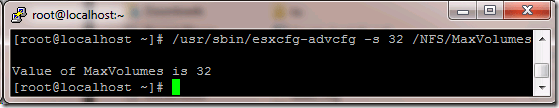

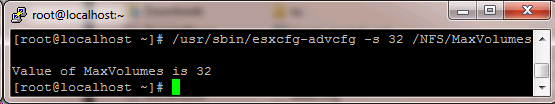

When you change the value to 32 via this command:

/usr/sbin/esxcfg-advcfg -s 32 /NFS/MaxVolumes

This will be the output:


PowerCLI: Changing Advanced Configuration Settings for NFS

 go2.wordpress[1]  image_thumb[1]

After reading Jase’s post http://www.jasemccarty.com/blog/?p=532 about setting the advanced configuration settings. I wanted to create a script and add it to the Community Powerpack (more info about the Powerpack here: http://www.virtu-al.net/2010/06/04/goodbye-virtu-al-hello-community/)

So I created two PowerCLI scripts to achieve this. You can see a short demo here:


This script will be added to the new version of the Powerpack.If you don’t want to wait until  the new version of the Community Powerpack comes online, you can use the following script to set the advanced settings on all of your ESX hosts:

    [parameter(Mandatory = $true)]

Connect-VIServer $vCenter

$esxHosts = Get-VMHost | Sort Name
foreach($esx in $esxHosts){
    Write-Host "Updating TCP and NFS Advanced Configuration Settings on $esx"

    # Update TCP Settings
    if((Get-VMHostAdvancedConfiguration -VMHost $esx -Name Net.TcpipHeapSize).Values -ne "30"){
        Set-VMHostAdvancedConfiguration -VMHost $esx -Name Net.TcpipHeapSize -Value 30 -Confirm:$false
    if((Get-VMHostAdvancedConfiguration -VMHost $esx -Name Net.TcpipHeapMax).Values -ne "120"){
        Set-VMHostAdvancedConfiguration -VMHost $esx -Name Net.TcpipHeapMax -Value 120 -Confirm:$false

    # Update NFS Settings
    if((Get-VMHostAdvancedConfiguration -VMHost $esx -Name NFS.HeartbeatMaxFailures).Values -ne "10"){
        Set-VMHostAdvancedConfiguration -VMHost $esx -Name NFS.HeartbeatMaxFailures -Value 10 -Confirm:$false
    if((Get-VMHostAdvancedConfiguration -VMHost $esx -Name NFS.HeartbeatFrequency).Values -ne "12"){
        Set-VMHostAdvancedConfiguration -VMHost $esx -Name NFS.HeartbeatFrequency -Value 12 -Confirm:$false
    if((Get-VMHostAdvancedConfiguration -VMHost $esx -Name NFS.HeartbeatTimeout).Values -ne "5"){
        Set-VMHostAdvancedConfiguration -VMHost $esx -Name NFS.HeartbeatTimeout -Value 5 -Confirm:$false
    if((Get-VMHostAdvancedConfiguration -VMHost $esx -Name NFS.MaxVolumes).Values -ne "64"){
        Set-VMHostAdvancedConfiguration -VMHost $esx -Name NFS.MaxVolumes -Value 64 -Confirm:$false


You can start the script with the parameter –vCenter in my case this is vc01:


The script will generate the following output.


Note on the first ESX host I already changed the NFS.HeartbeatFrequency during the test of the cmdlets.

VMware: First benchmarks with 10 GigE

Generally this is exactly what we expected: to be able to provide good performance to many virtual servers which do network and/or disk-I/O only periodically without overprovisioning the whole infrastructure.

At the moment there is exactly one dual-port 10 GigE card in every VMware server and there are two physical connections to two different switches – a much cleaner setup than the 12 (!) GigE interfaces per server we had before

Lees de rest van de benchmark hier: http://21stcenturystorage.cebis.net
