Host Profiles: Ruleset xxxx doesn’t match the specification


Today I was testing Host Profiles (again) and I must say it works a lot better than during my previous tests. There was only one thing very annoying during my tests. When the host was in maintenance mode, I applied the Host Profile and performed a check. Everything was OK and the host was compliant.  But when the host was out Maintenance mode and I checked if the host was still compliant, I received the following message:


Unfortunately there’s no knowledgebase article which describes those messages so I started to Google and found a post on the VMware Communites by khushal: http://communities.vmware.com/message/1357268

1. Open vCenter go to Home — > Management –> Host Profiles

2. Right Click on the Host Profile you are using for your Cluster and Select Edit

3. Expand the profile Profile

– Profile-name

– Firewall configuration

*     – Ruleset Configuration*

*     – faultTolerance*

       Select Ruleset and check the checkbox in right hand “*Flag Indicating whether ruleset should be enabled”

Click OK.

and check Compliance again in Cluster.

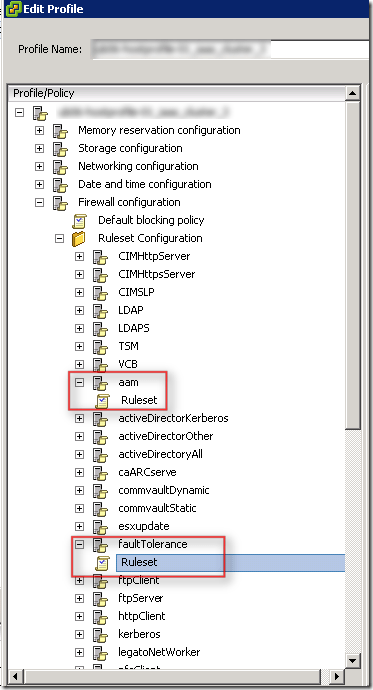

To fix the annoying messages I did change the aam and faultTolerance settings via:

Edit Profile –> Firewall configuration –> aam –> ruleset:

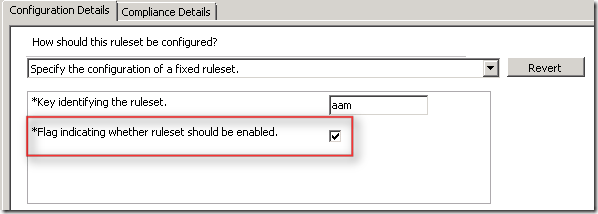

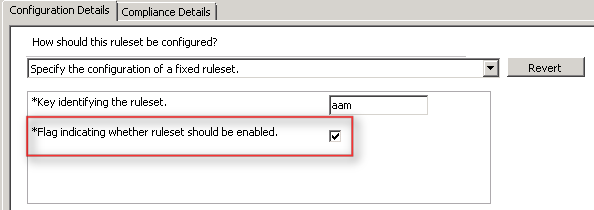

Enable the checkbox:


Repeat the steps for the faulttolerance setting.

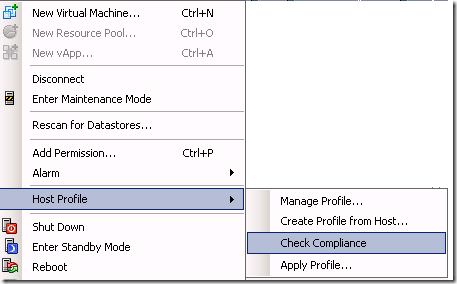

Now you can check the compliance via:


Or you can run the following PowerCLI one-liner to check the compliance of al your hosts in a cluster:

Get-Cluster <clusterName> | Get-VMHost | Sort Name | % {Test-VMHostProfileCompliance -VMHost $_}
