PowerCLI: Automatic expand the available ports for a dvPortgroup


Last year William Lam wrote a blog post on the VMware vSphere Blog about automatic expand a dvPort group port. You can find his post here: http://blogs.vmware.com/vsphere/.  There is also a KB article about this subject. You can find it here: KB1022312

Just a quote from the KB article KB1022312 to explain the auto expand feature and how you can enable it without using Perl of PowerCLI scripting:

Note:  vSphere 5.0 has introduced a new advanced option for static port binding called Auto Expand. This port group property allows a port group to expand automatically by a small predefined margin whenever the port group is about to run out of ports. In vSphere 5.1, the Auto Expand feature is enabled by default.

In vSphere 5.0 Auto Expand is disabled by default. To enable it, use the vSphere 5.0 SDK via the managed object browser (MOB):

  1. In a browser, enter the address http://vc-ip-address/mob/.
  2. When prompted, enter your vCenter Server username and password.
  3. Click the Content link.
  4. In the left pane, search for the row with the word rootFolder.
  5. Open the link in the right pane of the row. The link should be similar to group-d1 (Datacenters).
  6. In the left pane, search for the row with the word childEntity. In the right pane, you see a list of datacenter links.
  7. Click the datacenter link in which the vDS is defined.
  8. In the left pane, search for the row with the word networkFolder and open the link in the right pane. The link should be similar to group-n123 (network).
  9. In the left pane, search for the row with the word childEntity. You see a list of vDS and distributed port group links in the right pane.
  10. Click the distributed port group for which you want to change this property.
  11. In the left pane, search for the row with the word config and click the link in the right pane.
  12. In the left pane, search for the row with the word autoExpand. It is usually the first row.
  13. Note the corresponding value displayed in the right pane. The value should be false by default.
  14. In the left pane, search for the row with the word configVersion. The value should be 1 if it has not been modified.
  15. Note the corresponding value displayed in the right pane as it is needed later.
  16. Go back to the distributed port group page.
  17. Click the link that reads ReconfigureDvs_Task. A new window appears.
  18. In the Spec text field, enter this text:
    <spec>
    <configVersion>1</configVersion>
    <autoExpand>true</autoExpand>
    </spec>

    where configVersion is what you recorded in step 15.
  19. Click the Invoke Method link.
  20. Close the window.
  21. Repeat Steps 10 through 14 to verify the new value for autoExpand.

If you need to change this setting for hundreds of dvPortgroups this will not be one of your favorite changes in your VMware environment. Well you know me. Let’s see if we can PowerCLI this job.

$dvPG = Get-VirtualPortGroup -Name "VM Network"
$dvPGview = get-view $dvPG
$spec = New-Object VMware.Vim.DVPortgroupConfigSpec
$spec.AutoExpand = "True"
$spec.ConfigVersion = $dvPGview.Config.ConfigVersion
$dvPGview.ReconfigureDVPortgroup_Task($spec)
$dvPGview.UpdateViewData()

if you want to change all the dvPortgroups at one. You can use the following script:

Update: Thanks to Rafael Schitz from http://www.hypervisor.fr/ for the tip to filter out the dvUplink Portgroups. I have also added a check to find out if the dvSwitch is running the correct version to enable the autoExpand feature. Copy the script below and change de $dvSwitchName variable to the name of your dvSwitch.

$dvSwitchName = "dvSwitchName"
$dvSwitch = Get-VirtualSwitch -Distributed -Name $dvSwitchName
if($dvSwitch.ExtensionData.Config.ProductInfo.Version –notmatch "4.*"){
    foreach($dvPG in (Get-View -ViewType DistributedVirtualPortgroup|?{!($_.Tag|?{$_.Key -eq "SYSTEM/DVS.UPLINKPG"}) -and !$_.Config.autoExpand})){
        $spec = New-Object VMware.Vim.DVPortgroupConfigSpec
        $spec.AutoExpand = "True"
        $spec.ConfigVersion = $dvPG.Config.ConfigVersion
        $dvPG.ReconfigureDVPortgroup_Task($spec)
        Write-Host "Enable auotExpand for dvPortgroup: $($dvPG.Name)" -ForegroundColor Yellow
        $dvPG.UpdateViewData()
    }
}
else{
    Write-Host "dvSwitch: $($dvSwitch.Name) is not configured with version 5 or higher. Please upgrade.." -ForegroundColor Red
}

If the dvPortgroup has 0 available ports and a VM wants to connect a network adapter to the dvPortgroup, The total ports variable will be automatically expand with 10 ports. After a couple of tests I can confirm that it works.

My VM Network dvPortgroup had 70 ports. When al these ports where claimed by VM’s and a new VM was deployed or an existing VM was configured with a new network adapter, the Available ports variable was expanded with 10 ports without any impact for the running VM’s.


Sources: KB1022312, http://blogs.vmware.com/vsphere/, http://www.hypervisor.fr/?p=4633

Advertisements

PowerCLI: dvSwitch info


In one of my previous posts you can find a PowerCLI script to report the dvPortgroup ports usage. In this post you’ll find a PowerCLI script to report the overall status of the dvSwitches in your environment. The script will report the dvSwitch Name, Version, Total ports maximum, Total ports in use and the total ports left on the dvSwitch.

Just copy the script below:

$dvSwitchInfo = @()
foreach($dvSwitch in (get-virtualSwitch -distributed |Sort Name)){
    $details = "" | Select Name, Version, Totalports, Portsinuse, Portsleft

    $totalPorts = $dvSwitch.ExtensionData.Config.MaxPorts
    $Portsinuse = $dvSwitch.ExtensionData.Config.NumPorts
    $portsleft = ($totalPorts - $Portsinuse)

    $details.Name = $dvSwitch.name
    $details.Version = $dvSwitch.ExtensionData.Summary.ProductInfo.Version
    $details.Totalports = $totalPorts
    $details.Portsinuse = $Portsinuse
    $details.Portsleft = $portsleft

    $dvSwitchInfo += $details
}
$dvSwitchInfo

The output will look like this:


I will create another script to combine the information of the dvSwitch and the dvPortgroups available on the dvSwitch to a complete html report like the vCheck.

PowerCLI: dvPortgroup ports report


In this post I will show you how you can generate a simple report of your dvPortgroups. The report shows the Name of the dvPortgroup, The portbinding configuration, The total ports configured, The total ports in use and last but not least the total ports left on the dvPortgroup.

The script below will search for all distributed portgroups in your vCenter where you’re connected to with PowerCLI.

$pgInfo = @()
foreach($pg in (get-virtualportgroup -distributed | Sort Name)){
    $details = "" | Select Name, PortBinding, Totalports, Portsinuse, Portsleft

    $totalPorts = $pg.ExtensionData.PortKeys.count
    $Portsinuse = $pg.ExtensionData.vm.count
    $portsleft = ($totalPorts - $Portsinuse)

    $details.Name = $pg.name
    $details.PortBinding = $pg.PortBinding
    $details.Totalports = $totalPorts
    $details.Portsinuse = $Portsinuse
    $details.Portsleft = $portsleft

    $pgInfo += $details
}
$pgInfo | Export-Csv -UseCulture -NoTypeInformation C:\Scripts\dvPortgroupInfo.csv

The CSV output will look like this:

Name PortBinding Totalports Portsinuse Portsleft
vlan1 Static 32 4 28
vlan2 Static 32 0 32
vlan3 Static 32 7 25
vlan4 Static 32 1 31
vlan5 Static 32 12 20
vlan6 Static 32 0 32

With a simple PowerCLI script you can create a report of all your dvPortgroups. I am going to create another PowerCLI script to use as a Nagios plugin to see witch of the dvPortgroups have less than <X> ports left. So to be continued.

The numPorts value: <####> in spec exceeded maxPorts 8192

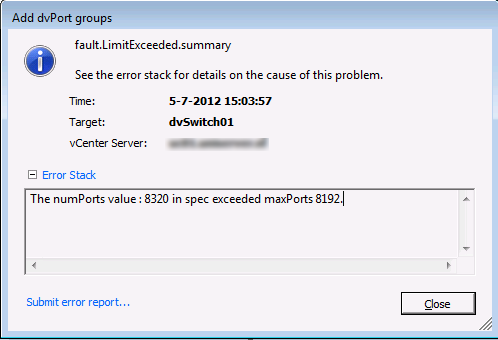

Today I was playing around with the vSphere Distributed Switch and trying to reach the configuration maximums of it by creating lots of dvPortgroups. But when I reached the port numbers above 8192, the dvPortgroup wasn’t created and I got the following error:


From KB1038193 I used the resolution to change the default max numPorts from 8192 to 20000. The 20000 value is also the one mentioned in the Configuration Maxium document: vsp_41_config_max.pdf so I don’t know why VMware used the 8192 max value. If anyone can explain why this extra limit if effective, please let me know.

The solution from KB1038193:

Symptoms
  • You cannot configure more than 8192 virtual ports in vCenter Server vNetwork Distributed Switch (vDS).
  • You see the error:
    The numPorts value : 8256 in spec exceeded maxPorts 8192.
Purpose

This article provides steps to increase the maximum number of vDS ports.

Resolution
Changing the maximum number of vDS ports by using vSphere PowerCLI

vSphere PowerCLI can be used to automate the different virtual machine tasks. It provides an easy-to-use C# and PowerShell interface to VMware vSphere APIs. For more information, see the VMware vSphere PowerCLI Documentation.

To change the maximum number of vDS ports, you can use this PowerCLI snippet:

$dvs = Get-VirtualSwitch -Distributed -Name DVSName | Get-View
$cfg = New-Object -TypeName VMware.Vim.DVSConfigSpec
$cfg.MaxPorts = 20000
$cfg.configVersion = $dvs.config.configVersion
$dvs.ReconfigureDvs_Task( $cfg )

I have changed the code slightly to report the current configuration. you can use this script or the one from the KB article:

# dvSwitchName
$dvSwitchName = "dvSwitch01"

$dvs = Get-VirtualSwitch -Distributed -Name $dvSwitchName | Get-View
Write-Host "The current configuration of MaxPorts = $($dvs.Config.MaxPorts)" -for Yellow
$cfg = New-Object -TypeName VMware.Vim.DVSConfigSpec

# Org
#$cfg.MaxPorts = 8192

# New
$cfg.MaxPorts = 20000

$cfg.configVersion = $dvs.config.configVersion
$dvs.ReconfigureDvs_Task( $cfg ) | Out-Null

# Report new configuration
$dvs = Get-VirtualSwitch -Distributed -Name $dvSwitchName | Get-View
Write-Host "The new configuration of MaxPorts = $($dvs.Config.MaxPorts)" -for Green

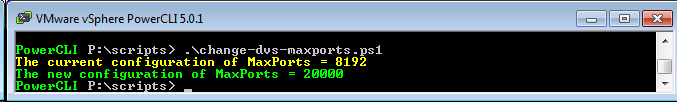

Output:


Source: KB1038193

PowerCLI: Set-dvSwitch



Last weekend I was playing around with the new dvSwitch feature in vSphere. So I created a dvSwitch and wanted to migrate my VM’s to it. Unfortunately this was not possible with the current version of PowerCLI. Normally you should be able to change the Network switch via:

Get-VM | Get-NetworkAdapter `
| Set-NetworkAdapter -NetworkName "traditional vswitch" -Confirm:$false

There must be a way to do this with PowerCLI but I didn’t know that way. So I asked Luc Dekens and the other PowerCLI guru’s for a solution. A couple of hours later Luc send me a script which was able to do exactly what I wanted to do.

The function / script can be found over here: http://poshcode.org/1373

You can start the function like this: Set-dvSwitch VirtualMachine dvSwitchPortgroup

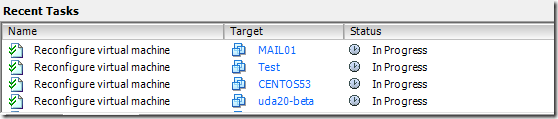

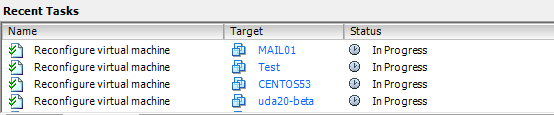

Just wait a couple of seconds till the Reconfigure virtual machine task is ready:


You can also run this function against all your VM’s via the following command:

$vms = Get-VM
foreach($vmName in $vms){
    Set-dvSwitch $vmName dvPG_production
}

Just wait a while and all your VM’s are migrated to the new dvSwitch:


If you want to start testing with the dvSwitch, keep an eye on http://lucd.info! @LucD22 is going to post an article about what you can do with PowerCLI and the dvSwitch.
