PowerCLI: dvPortgroup ports report


In this post I will show you how you can generate a simple report of your dvPortgroups. The report shows the Name of the dvPortgroup, The portbinding configuration, The total ports configured, The total ports in use and last but not least the total ports left on the dvPortgroup.

The script below will search for all distributed portgroups in your vCenter where you’re connected to with PowerCLI.

$pgInfo = @()
foreach($pg in (get-virtualportgroup -distributed | Sort Name)){
    $details = "" | Select Name, PortBinding, Totalports, Portsinuse, Portsleft

    $totalPorts = $pg.ExtensionData.PortKeys.count
    $Portsinuse = $pg.ExtensionData.vm.count
    $portsleft = ($totalPorts - $Portsinuse)

    $details.Name = $pg.name
    $details.PortBinding = $pg.PortBinding
    $details.Totalports = $totalPorts
    $details.Portsinuse = $Portsinuse
    $details.Portsleft = $portsleft

    $pgInfo += $details
}
$pgInfo | Export-Csv -UseCulture -NoTypeInformation C:\Scripts\dvPortgroupInfo.csv

The CSV output will look like this:

Name PortBinding Totalports Portsinuse Portsleft
vlan1 Static 32 4 28
vlan2 Static 32 0 32
vlan3 Static 32 7 25
vlan4 Static 32 1 31
vlan5 Static 32 12 20
vlan6 Static 32 0 32

With a simple PowerCLI script you can create a report of all your dvPortgroups. I am going to create another PowerCLI script to use as a Nagios plugin to see witch of the dvPortgroups have less than <X> ports left. So to be continued.

Advertisements

Host Profiles: Ruleset xxxx doesn’t match the specification


Today I was testing Host Profiles (again) and I must say it works a lot better than during my previous tests. There was only one thing very annoying during my tests. When the host was in maintenance mode, I applied the Host Profile and performed a check. Everything was OK and the host was compliant.  But when the host was out Maintenance mode and I checked if the host was still compliant, I received the following message:


Unfortunately there’s no knowledgebase article which describes those messages so I started to Google and found a post on the VMware Communites by khushal: http://communities.vmware.com/message/1357268

1. Open vCenter go to Home — > Management –> Host Profiles

2. Right Click on the Host Profile you are using for your Cluster and Select Edit

3. Expand the profile Profile

– Profile-name

– Firewall configuration

*     – Ruleset Configuration*

*     – faultTolerance*

       Select Ruleset and check the checkbox in right hand “*Flag Indicating whether ruleset should be enabled”

Click OK.

and check Compliance again in Cluster.

To fix the annoying messages I did change the aam and faultTolerance settings via:

Continue reading

PowerCLI: Copy Datastore Items


In this short post I will show a PowerCLI script I wrote to copy ISO files from datastore y to datastore x. The datastores are in the same vCenter and virtual datacenter accessible but the vSphere hosts are located inside two different IP subnets and a firewall rule prevents to copy files between the two subnets. So I had to think about a work around. Well this one is easy. On the vCenter server I created a script to peform the following steps:

  1. Create two PSDrives for each Datastore
  2. Get al the ISO filenames
  3. Downlad the ISO to the c:\tmp directory from datastore y
  4. Upload the ISO from the C:\tmp directory to the datastore<X>\iso directory
  5. Remove the ISO from C:\tmp
  6. repeat the steps above until all the ISO files are copied to the new datastore.

The PowerCLI script to perform the described tasks:

New-PSDrive -location (get-datastore template-01) -name tpl01 -PSProvider VimDatastore -Root '\'
New-PSDrive -location (get-datastore template-02) -name tpl02 -PSProvider VimDatastore -Root '\'

$isos = ls tpl01:\iso\ | % {$_.Name}
foreach($iso in $isos){
    Write-Host "copy $($iso) to C:\tmp" -fore Yellow
    Copy-DatastoreItem -item tpl01:\iso\$iso -Destination C:\tmp

    Write-Host "copy $($iso) to template-02\iso" -fore Yellow
    Copy-DatastoreItem -item C:\tmp\$iso -Destination tpl02:\iso

    Write-Host "removing the tmp file $($iso) from C:\tmp" -fore Yellow
    Remove-Item C:\tmp\$iso -confirm:$false

    Write-Host "done" -fore Green
}

So once again PowerCLI to the rescue.

PowerCLI: Disable / Enable HA Host Monitoring


In the case you need to or your network team needs to do some network maintenance on the switches which VMware HA uses to communicate with the other hosts or where the das.isolationaddress (default gateway) is configured/ It’s smart to disable the Host Monitoring feature of VMware HA. You can do this easily by hand via edit cluster – VMware HA and uncheck the Enable Host Monitoring feature. See screenshot below:


But what if you have to disable Host Monitoring on multiple VMware HA cluster? Well, if you like PowerCLI, you can use the following script to disable or enable the HA Host Monitoring feature:

param(
    $vCenter,
    $option
)

if($vCenter -eq $null){
    Write-Host "Please enter the name of the vCenter Server" -ForegroundColor Yellow
    exit
}

switch($option){
    enabled {"The HA Host Monitoring feature will be enabled"}
    disabled {"The HA Host Monitoring feature will be disabled"}
    default {"the option value could not be determined."
    exit
    }
}

Connect-VIServer $vCenter

$clspec = New-Object VMware.Vim.ClusterConfigSpecEx
$clspec.dasConfig = New-Object VMware.Vim.ClusterDasConfigInfo
$clspec.dasConfig.hostMonitoring = $option

foreach($cluster in (Get-Cluster | sort Name)){
    $clview = Get-Cluster $cluster | Get-View
    $clview.ReconfigureComputeResource_Task($clspec, $true)
}

Disconnect-VIServer -Confirm:$false

Just save the script to change-HAHostMonitoring.ps1 and run it like this to disable the HA Host Monitoring feature:

Change-HAHostMonitoring vcenter.domain.loc disabled

If you want to enable Host Monitoring, just change disabled to enabled:

Change-HAHostMonitoring vcenter.domain.loc enabled

Note: Please test the script mentioned in this blog post in a lab or test environment before you use the script in a production environment.

PowerCLI: Migrate templates during the Enter Maintenance Mode task


Normally when you put a host into Maintenance mode the templates will stay on the host instead of being migrate to a different host. This can be very annoying if you are performing maintenance on the vSphere host and a colleague needs to deploy a VM from the template. I am running vSphere 4.1 update 1. I don’t know if this is still the case with vSphere 5. The host in Maintenance mode will look like this:


So to fix this annoying “issue” I have created a PowerCLI function to place the vSphere host into maintenance mode and if there are Templates registered on the vSphere host, the Templates will be moved to another host in the Cluster.

Function Enter-MaintenanceMode{
<#
.SYNOPSIS   Enter Maintenance mode
.DESCRIPTION   The function starts the Enter Maintenance task and also migrates the Templates to another host.
.NOTES   Author:  Arne Fokkema
.PARAMETER vmHost
   One vmHosts.
.EXAMPLE
   PS> Enter-MaintenanceMode<vmHost Name>
.EXAMPLE
  PS> Get-VMHost <vmHost Name> | Enter-MaintenanceMode
#>

[CmdletBinding()]
param(
    [parameter(ValueFromPipeline = $true,
    position = 0,
    Mandatory = $true,
    HelpMessage = "Enter the vmHost to start the Enter Maintenance mode task")]
    $vmHost
)

    $templates = Get-VMHost $vmHost | Get-Template
    if($templates -eq $null){
        $tplMigrate = $false
    }
    else{
        $tplMigrate = $true
    }

    $targetVMHost = Get-VMHost -Location (Get-Cluster -VMHost (Get-VMhost $vmHost)).Name | Where {$_.Name -ne $vmHost} | Sort Name | Select -First 1
    if($tplMigrate -eq $true){
        foreach($tpl in $templates){
            Write-Host "Converting template $($tpl.Name) to VM" -ForegroundColor Yellow
            $vm = Set-Template -Template (Get-Template $tpl) -ToVM

            Write-Host "Moving template $($tpl.Name) to vmHost: $($targetVMHost)" -ForegroundColor Yellow
            Move-VM -VM $vm -Destination (Get-VMHost $targetVMHost) -Confirm:$false | Out-Null

            Write-Host "Converting template $($tpl.Name) back to template" -ForegroundColor Yellow
            ($vm | Get-View).MarkAsTemplate() | Out-Null
        }
    }
    Write-Host "Enter Maintenance mode $($vmHost)" -ForegroundColor Yellow
    Set-VMHost $vmHost -State Maintenance | Out-Null
}

You can run the script like this:

Enter-MaintenanceMode esx07

Or from the pipeline:

Get-VMHost esx07 | Enter-MaintenanceMode

The output will be the same:

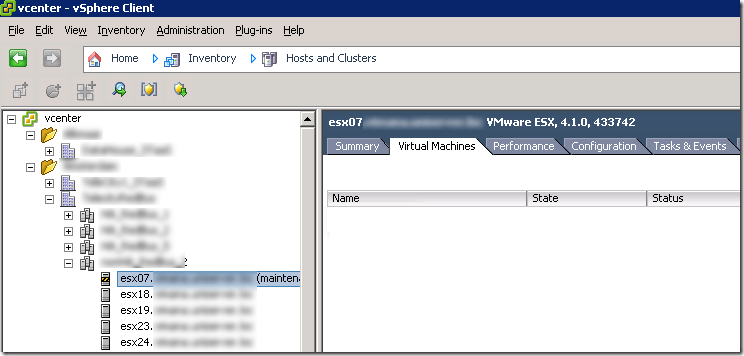

And the host is completely empty and ready for maintenance:


Disconnect ISO files from Templates with PowerCLI


Just a quick post about how to disconnect ISO files from templates with PowerCLI.  With the following script you can set the CD Drive to No Media. So the ISO files will be disconnected from the Template VMs.

$templates = Get-Template
foreach($tpl in $templates){
    $vm = Set-Template -Template (Get-Template $tpl) -ToVM
    Get-CDDrive -VM $vm | Set-CDDrive -NoMedia -Confirm:$false | Out-Null
    ($vm | Get-View).MarkAsTemplate() | Out-Null
}

First the script will fill the templates variable with all the templates available. The next step is to convert the Template back to a VM. When the template is converted to a VM the Get-CDDrive cmdlet is used to set the CD Drive to No Media. When the CD Drive is configured the VM will be converted back to a template. In stead of nine mouse clicks per template you can lean back and drink your cup of coffee or thee and see the magic powered by PowerCLI.

How to copy ISO files between datastores via PowerCLI


We decided to replace our current central ISO datastore to a new one on different storage. You can use the CP commend on the Service Console, if you’re still running ESX classic. But I wanted to investigate if there was a way to do this with PowerCLI. Well there is cmdlet for that called Copy-DatastoreItem. In the PowerCLI help you will find something like this:

Copy-DatastoreItem

Synopsis Copies items between datastores and between a datastore and a local file system provider.

Syntax Copy-DatastoreItem [-Item] [[-Destination]] [-Force] [-PassThru] [-Recurse] [-WhatIf] [-Confirm]

But how do you find the datastore where you want to copy files from?  Well you need to keep in mind the following two objects. The Folder, if you created one (1) and the Datacenter where the Datastore belongs to (2):


Now that you know the path to the datastore containing the files you want to copy. You can start PowerCLI and connect to your vCenter server. Before you continue, you need to create a temp directory to temporarily save the ISO files in. In my case this is E:\iso. The one-liner will look like this:

Copy-DatastoreItem vmstore:\Alkmaar\DataCenter\template-01\iso\* E:\iso

And now we wait until the files are copied to the temp directory:


The next step is to copy the files from the temp directory to the new datastore.

Copy-DatastoreItem E:\iso\* vmstore:\DataCenter\template-01\iso\

And we wait again:
