Citrix: Before installing Hotfix Rollup pack 3



Voordat je Hotfix Rollup pack 3 installeerd lees je eerst CTX115626. Ik heb daar de volgende punten uit gehaald:

  • Als eerste check je CTX118771 voor bekende bugs tijdens het installeren en de oplossingen voor deze bugs.
  • Daarna upgrade je de Licentie server naar versie 11.5. Deze verzie kun je hier downloaden: Citrix Web site je hebt hier wel een MyCitrix account voor nodig.
  • Installeer daarna op alle Citrix Servers de Microsoft Visual C++ SP1 Redistributable. Deze kun je hier downloaden: Microsoft Web site.
  • Als je de Hotfix Rollup pack via een batch script unattended installeerd, kan deze setup sluiten met een foutmelding. Dit kun je omzeilen door niet de /qb switch te gebruiken maar de /qb- of de /qn switch.


Nadat je Hotfix Rollup pack 3 hebt geïnstalleerd.

  • Het kan zijn dat na de installatie van de Hotfix Rollup pack de Suite Monitoring and Alerting (SMA) service, die gebruikt wordt door het Access Management Console niet meer start. Dit kun je oplossen door Microsoft .Net 2.0 bij te werken naar SP1.


Voordat je de hotfix rolluppack gaat installeren is het ook nog verstandig om even in het Citrix forum te kijken:



De website is een verzamelplaats van verschillende, meestal gratis tools voor XenApp en andere Citrix applicaties. Hieronder vind je een klein overzicht van de verschillende tools.

  • XenApp Load Evaluators Manager
  • XenApp Servers Logon Manager
  • XenApp Sessions Cleaner
  • Modded Web Interface 4.6
  • XenApp App Manager
  • etc.

Klik op het plaatje om naar de website te gaan.


VMware: Citrix on VMware Recommendations

Sven Huisman heeft weer een goede post geplaastst op zijn weblog.

Verron Martina from VMware dropped me an e-mail with a lot of recommendations for running Citrix in a VI3.x environment. These recommendations come from other system engineers from VMware working in the field. Thanks Verron, for sharing this.

Technical Recommendations:

  • I used the ballooning driver. Some Citrix forums will tell you not to use it but for us the ballooning driver made a complete difference.
  • Start by using only one vCPU per VM and if possible use affinity to make sure that the VM is not running on the same core as the console or another VM.
  • The sweet spot we found was to assign only 2GB to the VM and something between 30 and 40 users per VM.
  • Our target was not to beat a physical CPS server with a single VM but get more aggregated users using 2 or 3 VMs (depending on the number of cores available) with no more than 40 users per VM. Do not over commit the cores as that will lose advantage.
  • The final target for us was to demonstrate that the VMs running simultaneously on the same physical server can get a higher number of users (between 70 and 90% more) than a normal CPS installed on the same HW while user experience (keyboard-screen response times, login times, app launch times, etc) are very similar.
  • Some times we have to be patient and wait a few minutes for the VM to get steady, then the magic shows up and the VMs will surpass the physical server regarding load tolerance.
  • Regarding login times, the VM can show longer times; however, once the user is in, the VMs will look fast. Check than DNS servers are not getting messy as this is commonly the problem with long login times.
  • Make sure that the network interfaces are using fixed speed when connecting to the network, do not leave auto negotiated speeds. The best is to use 1000 mbps FULL DUPLEX. :-s
  • Use one virtual disk for Windows and CPS and a different virtual disk for Windows paging of the same VM.
  • When installing VMware tools use a custom installation and remove the shared folder feature. This is very important as Citrix seems not to like that and it is a useless feature on ESX as it’s meant for Workstation.

  • Follow VMware’s best practices for performance tuning on ESX (
  • Build your template Citrix virtual machine from scratch (don’t convert an existing physical server).
  • Use a single virtual CPU for the template vm
  • This will allow the Windows operating system in the guest to use a uni-processor HAL, as opposed to a SMP HAL, streamlining the guest operating system.
  • Configure the template vm for 2-4 GB RAM..
  • Configure separate virtual disks (VMDK files) for the operating system and the pagefile.
  • Ensure you align the NTFS partition in the VMDK prior to the Windows installation in the guest (at Netapp –;  at VMware –
  • Use a 64-bit Windows installation. :-s
  • Have an understanding of what an ‘acceptable’ threshold of users will be… Some customers see an increase in the number of users per Citrix instance when virtualized, some see fewer.  You should go into it with the expectation that you may get fewer users, as well as what you would like to see (ie 80% of physical or better?  70%?).


Bear in mind that even if you get fewer users per vm than in a physical environment, there are many other benefits to using virtualized Citrix servers:


  • One of the things many Citrix shops struggle with is their deployment process – how do we maintain an up-to-date image for the farm that incorporates the required applications and accommodates the hardware in question… rolling out Windows, including updates and patches, and the Citrix software (though this could be handled by Citrix Installation Manager).  Either way, you are maintaining server images somewhere  either through the use of a complicated installation script, or through imaging software such as Ghost.
  • Deploying a virtual machine through the use of templates is far quicker and more efficient than any other physical imaging process you might have used.  VMs can be deployed in a matter of minutes using templates.  The templates themselves can be created from existing virtual machines, and can be copied and used with VMware snapshots or SAN/NAS snapshots, giving you the ability to easily maintain a library of templates for different types of operating systems, applications, etc.

Disaster recovery:

  • Setting up a Citrix farm to failover to another site requires a large investment in hardware, and man-hours to configure the remote site to handle all the applications necessary.  Furthermore, the hardware in the remote site has to be of the same type as the primary, or your deployment strategy has to take hardware differences into account.
  • Using virtual machines, all you need to do to enable a DR site is have a copy of the required virtual machines in the remote location – hence you only need to set up the farm once, and maintain a copy of it in the remote location.  Spinning up your DR or business continuity site is a matter of ‘powering up’ the virtual machines.  VMware Site Recovery Manager may even help automate that process.


  • Since the citrix system is accessed by users like a PC on a regular basis, a Citrix server is more prone to failure than a regular server (though, with proper maintenance, hopefully less prone than a desktop).  Server outages mean lost productivity for your users, and a significant effort in troubleshooting the problem, since Terminal Services is a good deal more complicated than a regular server.
  • To properly design for the outages we know we will have, you have to have extra capacity in the farm to handle the overflow users when one of the servers is down.  This is true for both planned and unplanned downtime.
  • VMware ESX has been recognized in the industry as one of the most stable platforms to be introduced… ever.  This means fewer outages due to host failures.  Also, since we standardize and virtualize the hardware of the guest operating systems, this holds true across different hosts, enabling your virtual machines to run across hosts from different manufacturers and chipsets.
  • See

Application Deployment:

  • Many Citrix shops do a good deal of work maintaining multiple images – deploying applications in ‘stovepipe’ configurations…  that is to say, multiple small groups of Citrix servers, each dedicated to a specific set of applications.  Frequently, this is due to largely due to application incompatibility.  However, it results in the Citrix admin being required to maintain several different images for the Citrix farm.
  • Even if the shop has standardized on a single Citrix image, they will not be using the company’s standard application deployment methodology…  Terminal Services is too funky with regards to application deployment, and requires much handholding.  Most Citrix shops has compeletely separate processes for packaging applications for a PC versus a Citrix server.
  • VMware ThinApp ( can be used to image your applications separately from the Citrix image… In fact, an application that has been packaged with ThinApp on Windows 2003 will work on Terminal Services, Citrix, Windows XP, and Vista, eliminating the need to package that application for the different platforms.  Furthermore, ThinApp includes a ‘sandbox’ to prevent applications from conflicting with each other.  You simply place the packaged application on a file share on the network, accessible to the Citrix servers (or PCs, or both), and you are done.  Your users simply execute the application from the shared directory, and they are off and running.  This results in a win-win for the customer – the ability to package an application once, and use it for either a PC environment or a Citrix environment.

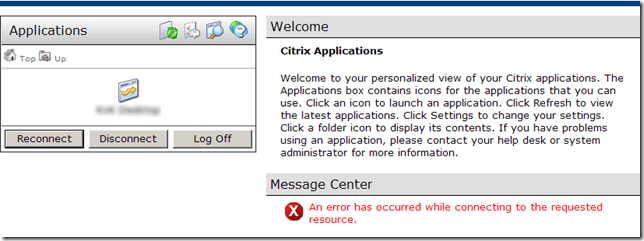

Citrix: An error has occurred while connecting to the requested resource

Ik heb al eens een oplossing gepost voor het onderstaande probleem. Zie de post hier.

Alleen deze keer kreeg ik ook de onderstaande melding in de eventlogs van de Web Interface server.


Ik ben vervolgens gaan zoeken op google. Als eerste kwam ik het volgende artikel tegen: CTX107181 dit bracht echter niet de oplossing. Na wat googlen kwam ik de volgende twee topics op het forum van Citrix tegen:

In een van die topics werd het volgende vermeld:


Ik heb nu de load evaluator omgezet van Advanced naar Default. Het probleem was daarna opgelost.

Citrix: How to determine the software version


In deze post vind je de verschillende locaties, waar je de versie nummers van Citrix software terug kunt vinden.


Presentation Server / XenApp




Web Interface:



Management Consoles:



ICA Client

C:\Program Files\Citrix\ICA Client\version.dat


Meer informatie vind je hier: CTX107570

Citrix: Script for logging off disconnected users

Ik kwam het volgende script tegen in een post van Joe Shonk op het forum van

On Error Resume Next

Const wbemFlagReturnImmediately = &h10
Const wbemFlagForwardOnly = &h20
Const cActive = 0
Const cDisconnected = 4
Const strComputer = “.”

Set objWMIService = GetObject(“winmgmts:\\” & strComputer & “\root\Citrix”)
Set colItems = objWMIService.ExecQuery(“Select * from Metaframe_Session Where sessionstate = ” & cDisconnected)

For Each objItem In colItems
if (objItem.SessionID > 0) and (objItem.SessionID < 65530) then
end if

Set objWMIService = Nothing

Dit script zorgt er voor dat alle Sessions die nog op Disconnected staan, netjes worden afgesloten. Dit script is handig om te draaien voor dat een Citrix server opnieuw wordt opgestart.

Citrix: Username.Domain folders on the TSProfile Share

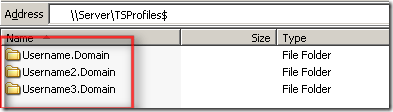

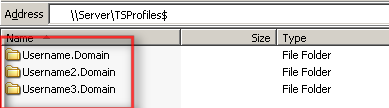

Het kan voorkomen dat je de onderstaande tsprofiles tegen komt op je TSProfile share. Meer informatie over hoe dit komt lees je in KB821929


Ik vond een post van Robert Illing op het Citrix forum met de oplossing:

Apparently in SP1 they incorporated this hotfix – If you look at the bottom if the hotfix it shows how windows looks at the terminal server roaming profiles.

We use \\server\username for our home drives and the \\server\username.domain caused us problems. The thing is windows will actually attempt \\server\username, but the user has to have full control on their profile. They also need to be the owner of the folder. If they are not the owner, windows will create a NEW profile for them using username.domain which created tons of profiles on our san.

There is a work around on the ownership problem. As we scripted our whole solution, and went about to go in and change ownership on thousands of profiles. If you create a GPO and go to Computer Configuration, Administrative Templates, System, User Profiles, then select “Do not check for user ownership of roaming profiles folder”. This will ignore the ownership of the profile.

So to clarify once you apply that GPO. You should be able to use \\server\username as long as the user has full control on their profile.

Op de policy met GPMC.msc en ga naar Computer Configuration – Administrative Templates – System –  User Profiles daarna enabale je de volgende optie Do not check for user ownership of roaming profiles folder


Citrix: Licensing error EventID 1028

Ik starte vandaag een oude VM op en wilde verbinding maken naar de Citrix omgeving. Dit lukte niet. Ik kreeg de onderstaande error.

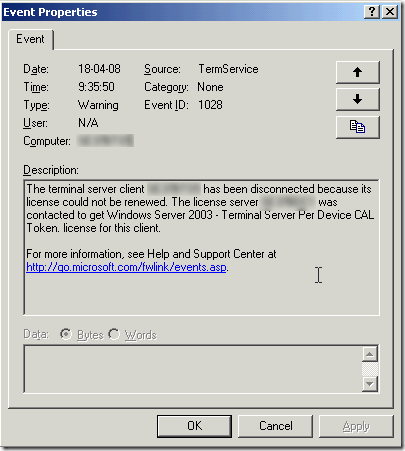

De volgende EventID werd in de eventlog weggeschreven op de terminal/citrix server.

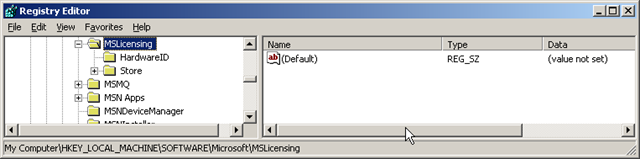

De oplossing voor dit probleem was het verwijderen van de MSLicensing key. Dit doe je via Regedit op de client en blader dan naar de key: HKLM\SOFTWARE\Microsoft en verwijder de key MSLicensing.


De oplossing kwam van Super Pippo op het Citrix forum:

Meer informatie over TSServer Licensing vind je in het volgende KB document: KB823313
